2000 mm 2500 mm 1600 mm
Weight
Weight
900 kg
Air Pressure
Air Pressure
5-6 bar

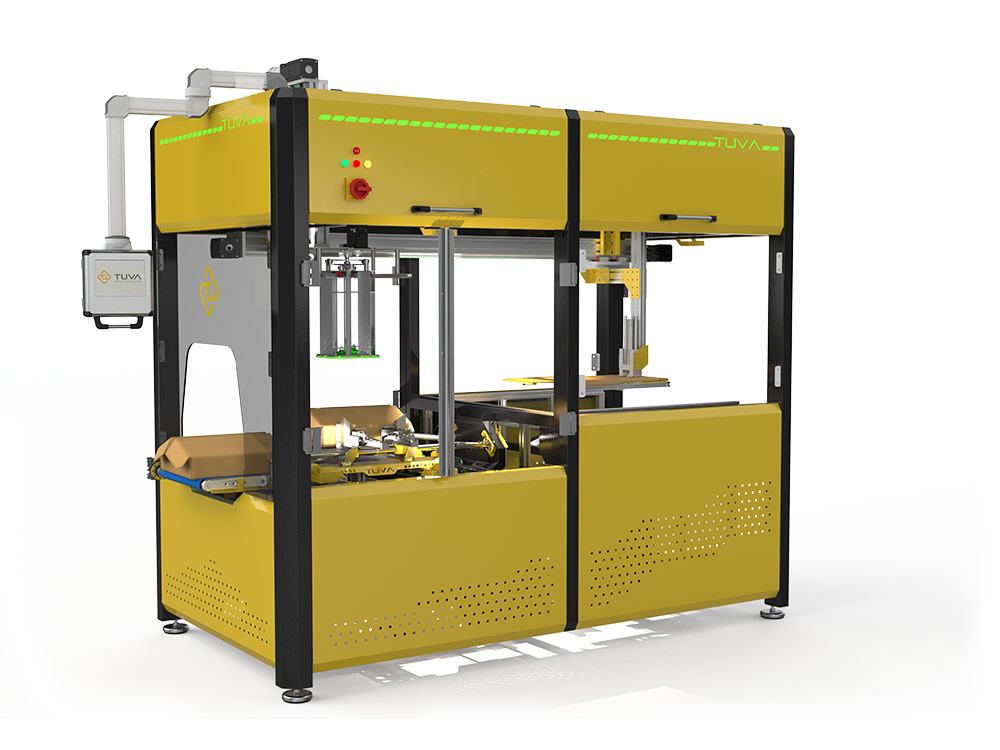

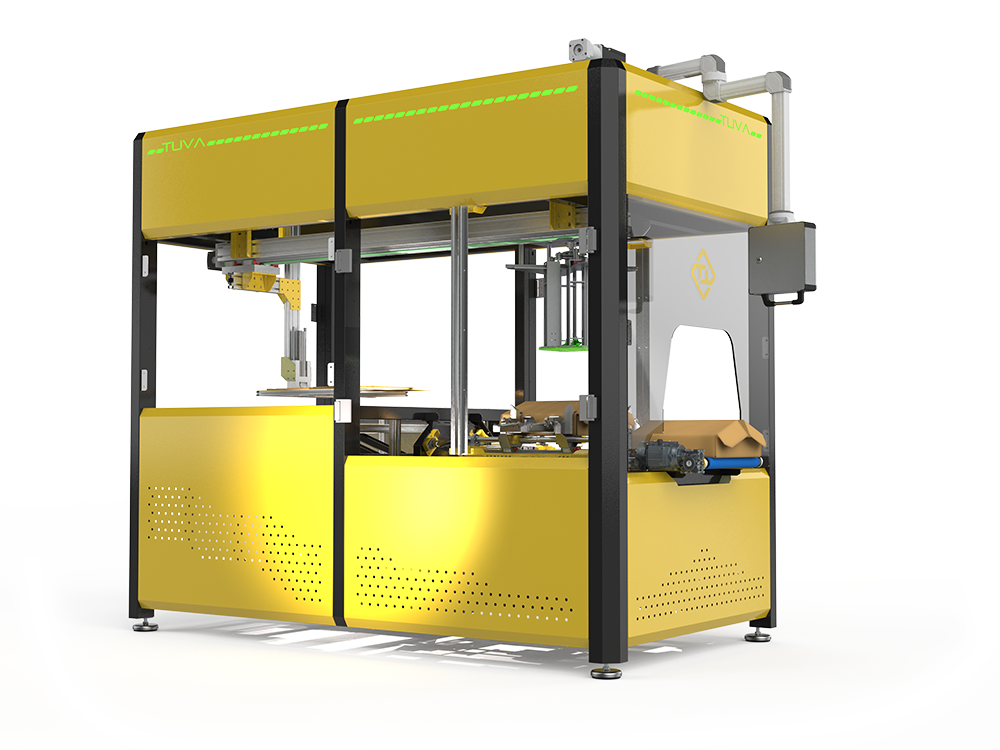

Full Automatic Box Making - Box Preparing Machine
TV-TF

Full Automatic Box Making - Box Preparing Machine

The machine prepares locked or hot-melt glued boxes for filling, operates fully automatically without personnel, and offers high capacity and 100% efficiency.

Our custom-made box assembly - box preparation machine can prepare locked boxes or boxes with hot-melt glue for filling. Our machine, which has a high capacity and works fully automatically without the need for personnel, provides 100% efficiency. We provide engineering services by making special mechanical design and automation software suitable for our customers' own boxes.

Setup Support
Full Automatic
2 Years Warranty

Options

  • Production from static painted or completely chromed stainless steel,
  • Cans can be adjusted in one machine, for different sizes,
  • Different size box transitions with a single button transition from the recipe with full automation system servo motors
  • Box gluing system: Hot Melt System
  • Automatic box size adjustment system; With servo motors and recipe registration system, automatic and fast transition to different size parcel settings is provided with a single click.

Technical Specifications

Controller 10” PLC Touch Screen
Speed min. 10-25 Cases / Minute
Magazine Capacity 150-200 Empty Cases
Safety Door and safety switch sensors
Warning System Low case alarm
Electrical Requirement 380 V | 50-60 Hz | 3 Ph
