1600 mm 8000 mm 2000 mm
Weight
Weight
900 kg
Air Pressure
Air Pressure
5-6 bar
Single Personnel Box Filling Line
Case Preparation and Banding Machines

Single Personnel Box Filling Line

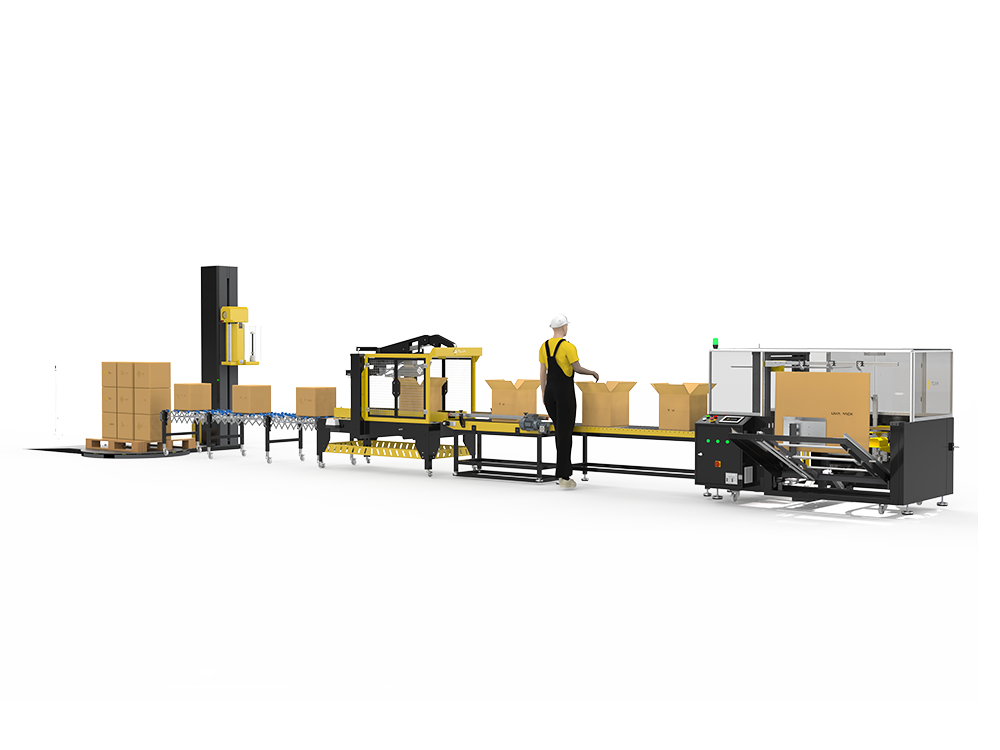

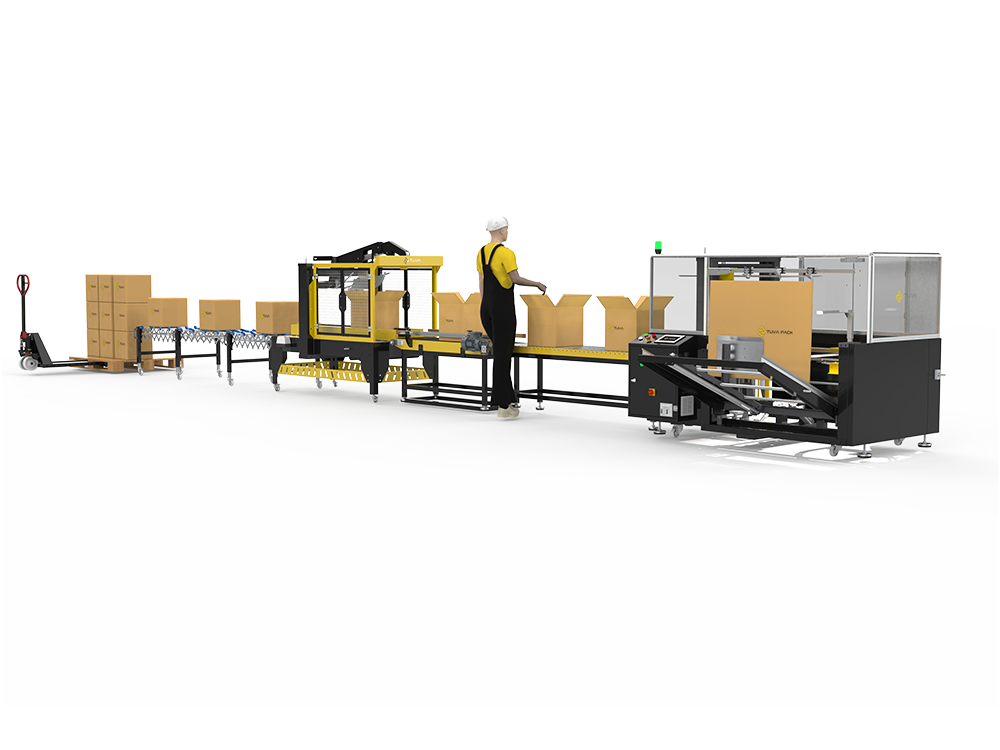

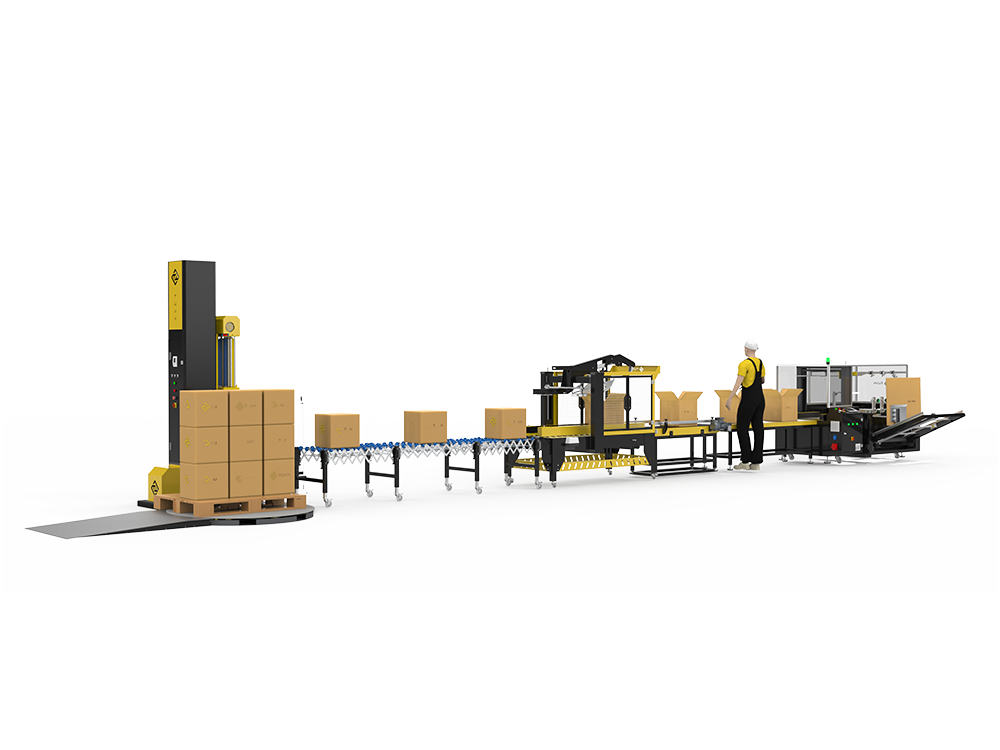

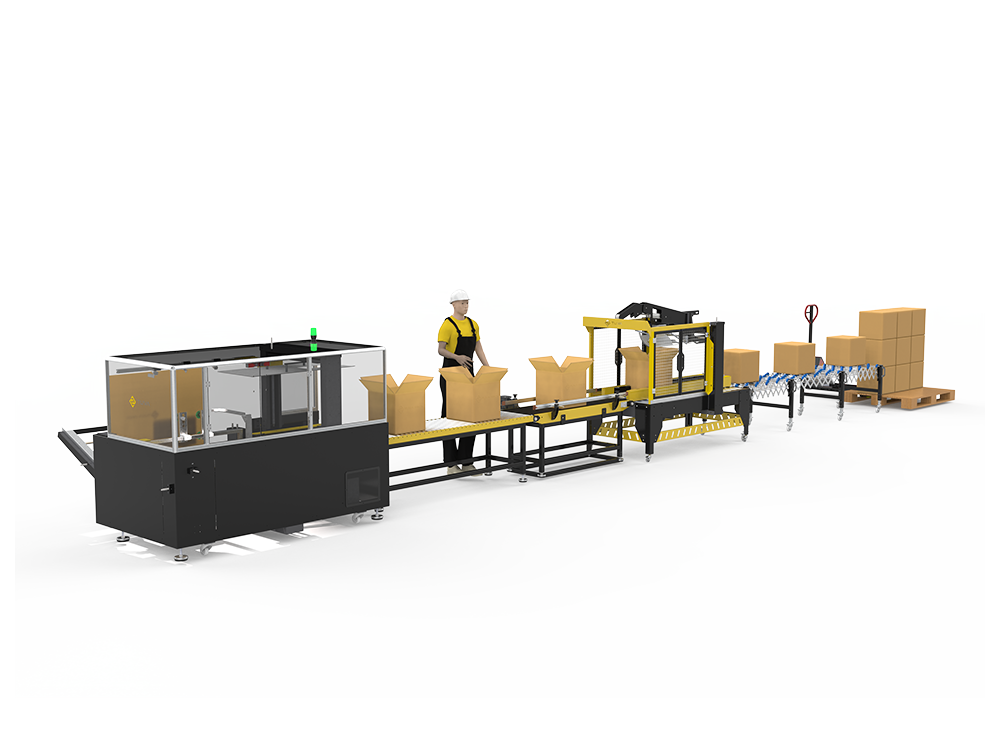

Line with two machines and conveyor prepares, fills, closes and tapes cases. High capacity, low cost and continuous production with single person.

Single Personnel Box Filling Line; For the packing process of your products, empty parcels are prepared with the Fully Automatic Box Preparation Machine and removed to the filling conveyor. After packing your products, it is closed and taped with a Fully Automatic Box Sealing and Banding Machine to complete your production. The machines make it easy to fill your ready-to-carry products by constantly preparing empty boxes, and they also reduce your production cost by providing automatic closing works.

Setup Support
Full Automatic
2 Years Warranty

Options

  • For the filling conveyor; Idler Roller Belt or Motorized Conveyor Belt
  • Production from static painted or completely chromed stainless steel
  • Box Sealing System: Hot Melt system
  • Large, standard and small machine options; The standard manufacturing dimensions of the machine can also be changed according to the dimensions of the boxes you will work with, and a more harmonious operation is provided for the products.
  • Automatic box size adjustment system; With servo motors and recipe registration system, automatic and fast transition to different size box settings is provided with a single click.
  • Mixed parcel making feature; It provides fast positioning according to the dimensions of the box, thanks to special sensors and servo motors, according to mixed boxes of different sizes.

Technical Specifications

Controller 7” PLC Touch Screen
Speed 8-10 Cases / Minute
Magazine Capacity 80-120 Empty Cartons
Size Compatibility 7 Handwheels With Position Indicators
Tape Specification 4-7 cm case sealing tape
Warning System Low carton and tape alarm
Electrical Requirement 380 V | 50-60 Hz | 3 Ph

Get Quote
