2300 mm 3800 mm 900 mm
Weight
Weight
900 kg
Air Pressure
Air Pressure
5-6 bar

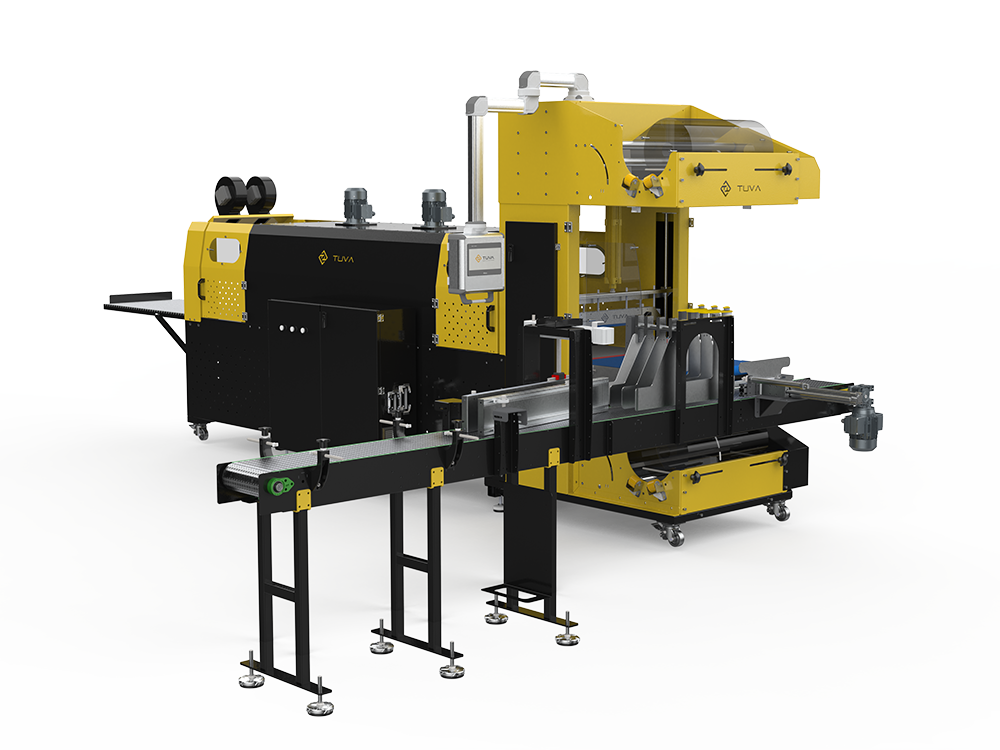

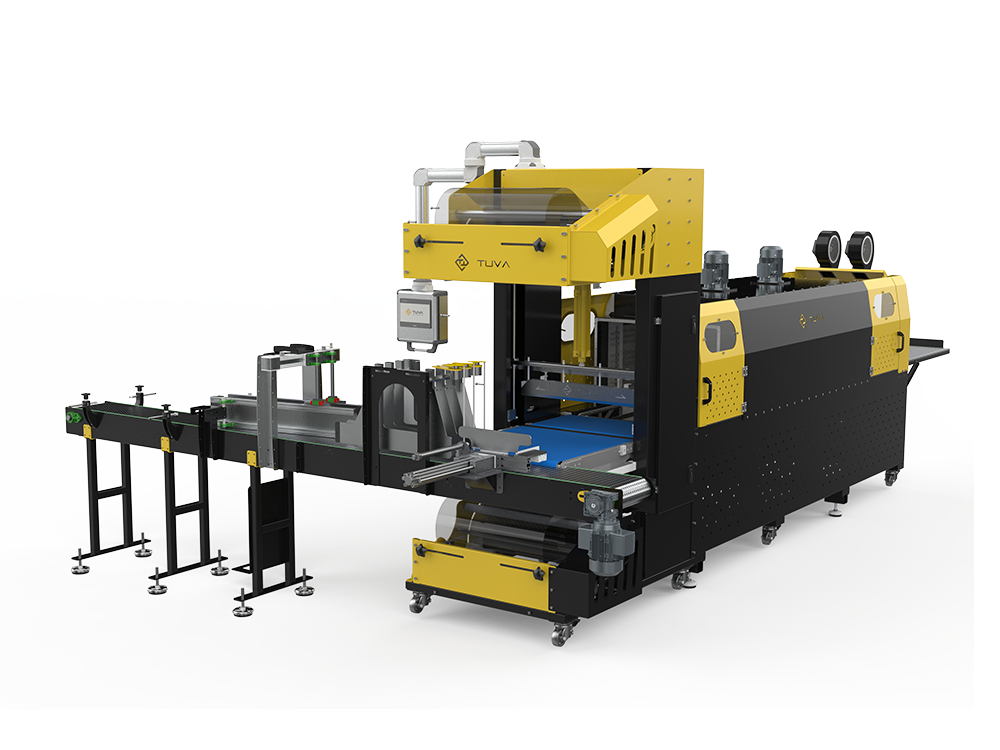

Fully Automatic Side-Feed Shrink Machine With Grouping System
Shrink Machines

Fully Automatic Side-Feed Shrink Machine With Grouping System

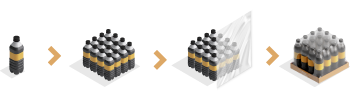

It is a fully automatic packaging solution that automatically groups products from the side line, wraps them with film, tightly packages them in a heat tunnel, and offers high capacity while being Industry 4.0 compatible.

Our continuous cutting shrink machines; It performs the process of covering all of your products with PVC or Polyolefin (POF) packaging in a rapid manner. Thanks to the use of PLC control, it provides the opportunity to work quickly and smoothly. It has the opportunity to be integrated directly and easily into production lines. Prescription can be made thanks to temperature and position settings that can be memorized and recalled.

Temperature controls can be precisely adjusted from the screen to P.I.D. can be set in a controlled manner. Thanks to safety sensors and working photocells, product packaging can be done in a protected way. Mechanical and electrical safety production is carried out in accordance with CE directives.

Setup Support
Full Automatic
2 Years Warranty

Options

  • Production from static painted or completely chromed stainless steel
  • Front feeding or side feeding grouping system depending on the coupling method to the production line
  • According to the dimensions of the products you will work with, the standard manufacturing dimensions of the machine are changed and a healthier operation is ensured.
  • Cut-paste operation with Servo Motor or Pneumatic Piston
  • Intra-tunnel transport system (silicone coated shafts, wire mesh tape, teflon mesh tape or heat resistant plastic modular tape

Technical Specifications

Controller 7” PLC Touch Screen
Speed 10-24 Packages / Minute
Mechanism Upper and lower motor-driven film feeding mechanism
Conveyor Adjustable conveyor speeds
Cable Flame-resistant external cable
Electrical Requirement 380 V | 50-60 Hz | 3 Ph
