2200 mm 3800 mm 900 mm
Weight
Weight
750 kg
Air Pressure
Air Pressure
5-6 bar

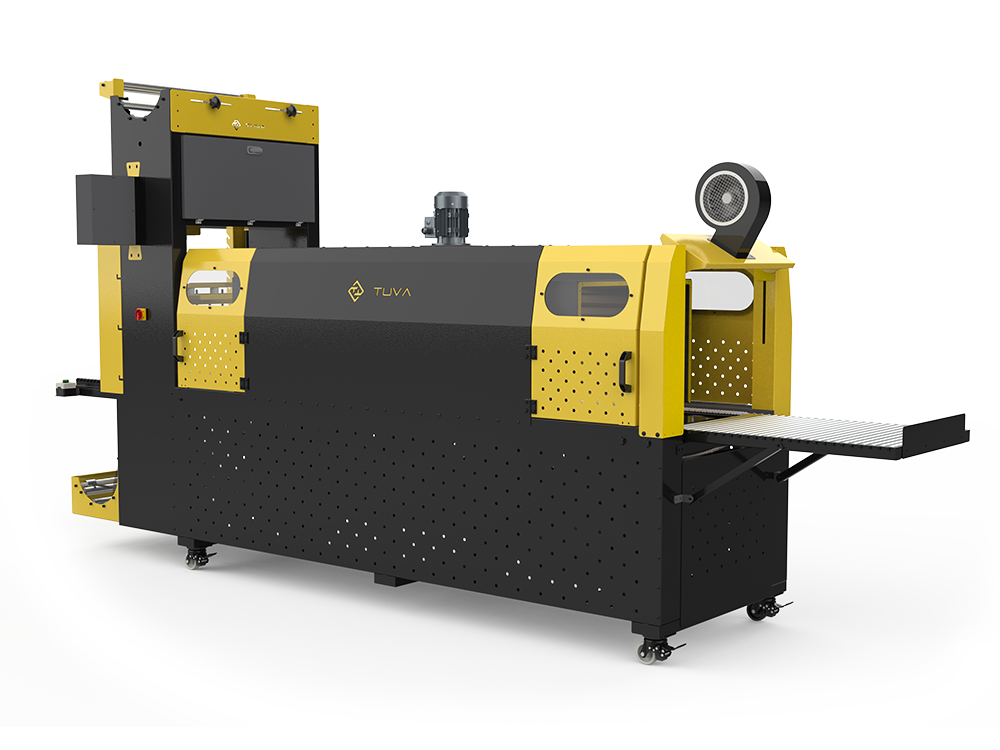

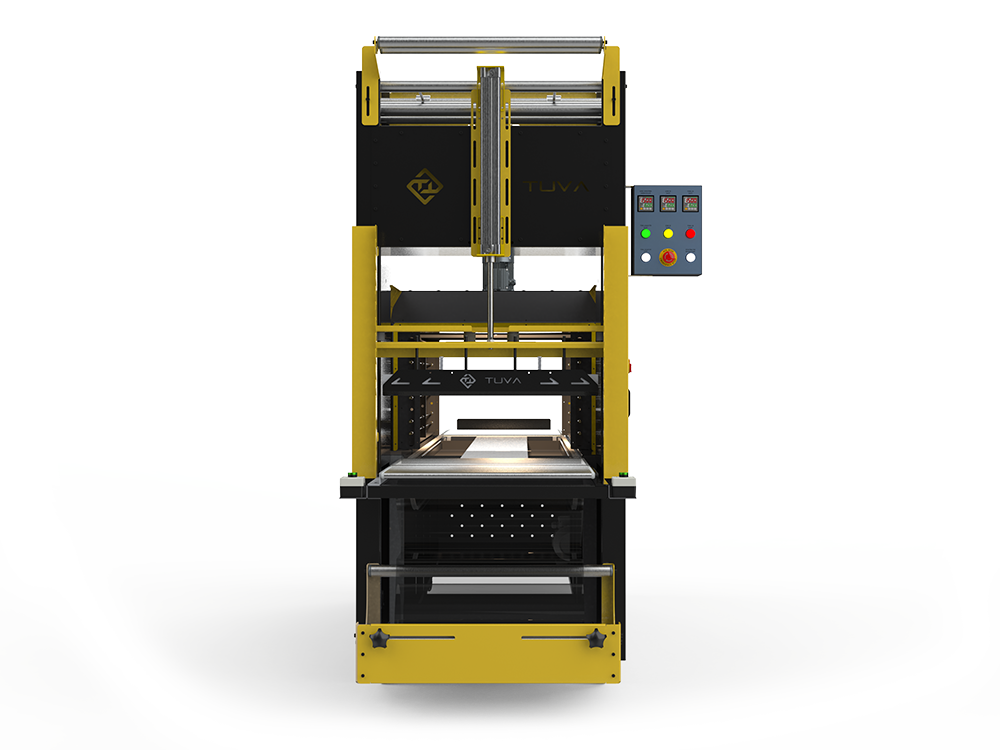

Semi-Automatic Shrink Machine
Shrink Machines

Semi-Automatic Shrink Machine

Manual-feed semi-automatic packaging solution that wraps products with film, tightly packs them through a heat tunnel, and offers durability and efficiency.

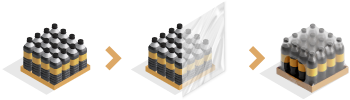

Semi-Automatic Shrink Machine; Generally, it covers a large part of the product by stretching it with PE packaging so that the boxes are not damaged during transportation. It is also used to combine boxes into multiple groups to form a single whole.

It meets the demands of a wide range of customers in various sectors such as food, beverage, pharmaceutical, chemical, cosmetics, paint, printing and automotive. It provides easy and safe packaging of products with or without pan. In this way, it both visualizes the products and reduces the cost of the parcel.

Setup Support
2 Years Warranty

Options

  • Production from static painted or completely chromed stainless steel
  • Jaw length from 60 cm to 120 cm and tunnel size option according to the largest product; According to the dimensions of the products you will work with, the standard manufacturing dimensions of the machine are changed and a healthier operation is ensured.
  • Adjustable tunnel conveyor speed
  • Soft pressure piston to fix the product during the cut-paste process
  • Intra-tunnel transport system (silicone coated shafts, wire mesh tape, teflon mesh tape or heat resistant plastic modular tape)
  • Side ironing rollers at the tunnel exit

Technical Specifications

Warming System P.I.D. Electronic Temperature Control System
Speed 5-8 Package / Minute
Mechanism Upper and lower manuel film feeding system
Conveyor Adjustable tunnel conveyor speed
Cable Flame-resistant external cable
Electrical Requirement 380 V | 50-60 Hz | 3 Ph
